THB SX series thin section crossed roller bearings with high precision are mainly used in manipulators, industrial robots, CT machine, speed reducers, gearboxes, etc.
Features:
- thinnest section, little space
- separable outer ring and integrated inner ring for inner ring rotary
- Precision: P4 or P5
- circlips: new
- rollers and spacers/retainers are cross arranged in 1:1
- free sample for inspection*******

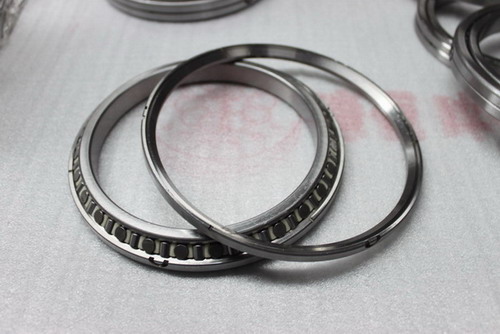

SX011814 separable outer rings with integraged inner ring for inner rotation
Structuer: roller
Row: single
Outer diameter: 90mm
Inner diameter: 70mm
Width: 10mm
Dynamic rated loading, axial: Ca=18KN
Static rated loading, axial: Coa=60KN
Dynamic rated loading, radial: Cr=12KN
Static rated loading, radial: Cor=30KN
Weight: 0.3kg
Regular stocks:
SX011814
SX011818
SX011820
SX011824
SX011828
SX011832
SX011836
SX011840
SX011848
SX011860
SX011868
SX0118/500
