Now position: Products > Heat Exchanger for Electric Cabinet\ Heat Exchanger for Electric Cabinet

Heat Exchanger for Electric Cabinet

Click View  Heat Exchanger for Electric Cabinet  photo
This model is designed for cooling down the electric cabinet of the CNC machines, telecommunication system and ...
Product No. - EEA Series
Product Prices - Negotiable
Delivery Days - 30 Days
Minimum Order - Negotiable
INQUIRY




Application

The Electric Cabinet of CNC Machine Tool, Tele-communication System and Electric Control System

Feature

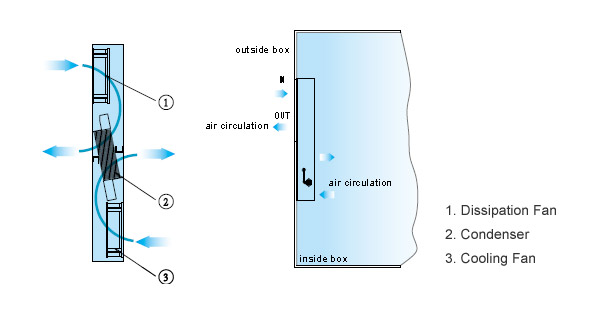

By heat exchange circulatoion to remove the heat in the Electric Cabinet due to long time operation, could reduce the risk of breakdown and improve the stability of electric cabinet, increase producitivity. It's Closed type to isolate the air of internal and ambient.

Spec / Model
(R or F)
Rating Capacity
W/K
Fan Moto Dimensions
( WxDxH )
Input Power
W
Current
A
mm
EEA-10A 5 18x2 110V / 0.5
220 / 0.3
250x70x480
EEA-20A 10 18x2 110V / 0.5
220 / 0.3
250x65x580
EEA-30A 15 38x2 110V / 1
220 / 0.5
250x85x780
EEA-50A 25 38x2 110V / 1
220 / 0.5
295x90x780
EEA-70A 35 38x2 110V / 1
220 / 0.5
297x100x858
EEA-100A 50 38x4 110V / 2
220 / 1
417x125x940
