Now position: Products > DC AXIAL FAN > 8025 DC FAN \ DC FAN 8025

DC FAN 8025

Click View  DC FAN 8025  photo
8025 DC FAN
Product No. - 8025D*-HBPL
Product Prices - Negotiable
Delivery Days - 30 Days
Minimum Order - Negotiable
INQUIRY




   DC AXIAL FAN 散熱風扇 8025 DC FAN

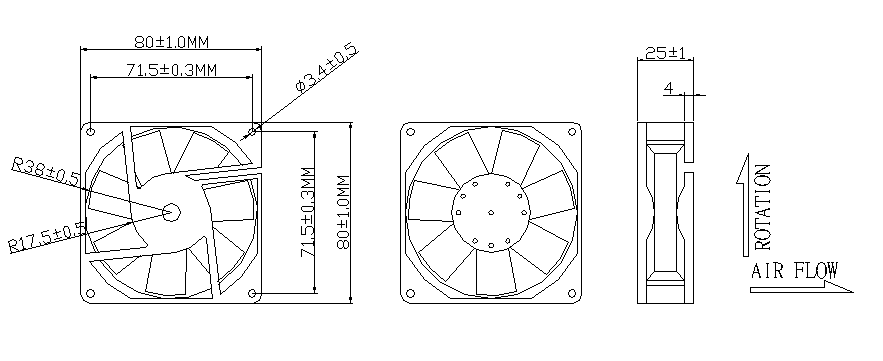

Size: 80*80*25m.

Motor: Brushless DC Motor

protected: 1,polarity+over current shutdown protected.

Frame(Houseing):  PBT + 30% fiber glass. Black color, UL94V-0.

Impeller: PBT + 30% fiber glass. Black color, UL94V-0.

Lead wire: 1007#22AWG. UL/CSA.

Insulation resistance: Min.10M Ohm at 500 VDC between terminal and the frame.

Dielectric Strength: 1 min at 1500 VAC.50/60 HZ.

Bearing type: B: 2 ball bearing.  Sleeve bearing S:   one Sleeve bearing

Operating Temp: Ball bearing:  within-20~80 degree C

                                           Sleeve bearing:  within-10~56 degree C

Sleeve bearing:  within -10~56 degree C

Life expectancy: Ball bearing:  50,000 hours at 60 degree C.

                             Sleeve bearing:   20,000 hours at 45 degree C.

Above measurements Tem. at: Within 20~30 degree C.

Above measurements humidity at: 65%+-15%.

Safety Approvals:  CE

Net weight : 87 (grams.)

CONNECTOR:  L: lead wire

otherfile DC FAN 8038.pdf
