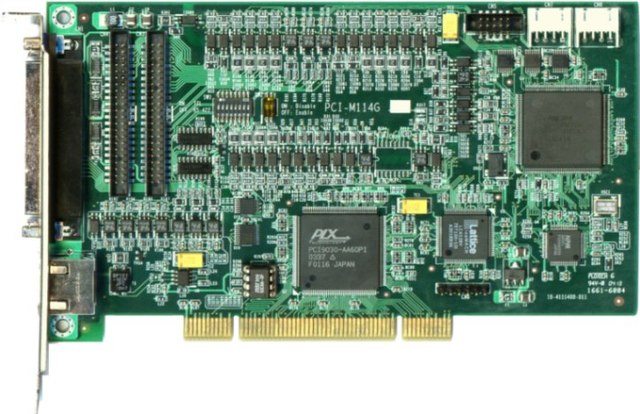

Master Card Vision Card Products SYN-TEK Technologies Inc.

•Max. 6.5MHz, 4-Axes pulse output

•Linear, circular and continuous interpolation

•High speed position latch function

•Manual pulse generator input interface

•Simultaneously start/stop on multiple axes

•Programmable acceleration and deceleration time

•Programmable pulse output and interrupt

•Position compare and trigger output

•1 Ring of Motion.NET master

•Programmable baud-rate up to 20Mbps transfer rate

•Max. 64 Motion.NET digital slave modules support

•Easy installation with RJ45 phone jack and LED diagnostic

Motion Control

•Pulse output mode: ±OUT/DIR, ±CW/CCW

•Pulse output rate: Max. 6.5Mpps / Min. 0.05pps

•Position range:28bits(±134,217,728 pulses)

•Home return mode: 13 types

•Velocity profiles: T-curve, S-curve

•Interpolation mode: linear, circular and continuous

•Counter for encoder feedback signals: 28bits up/down x 4

•Position latch input: LTC x 4

•Position compare output: CMP x4

•Incremental encoder input: ±EA x 4, ±EB x 4

•Encoder index signal input: ±EZ x 4

•Machine interface: PEL x 4, MEL x 4, ORG x 4, SLD x 4

•Servo driver interface: ALM x 4, RDY x 4, SVON x 4, INP x 4, ERC x 4

•Simultaneous start/stop motion input: STA, STP

•General input: IN x 3

•General output: OUT x 4

•I/O pin type: optically isolated with 2.5KVrms on all SCSI 68 pins
