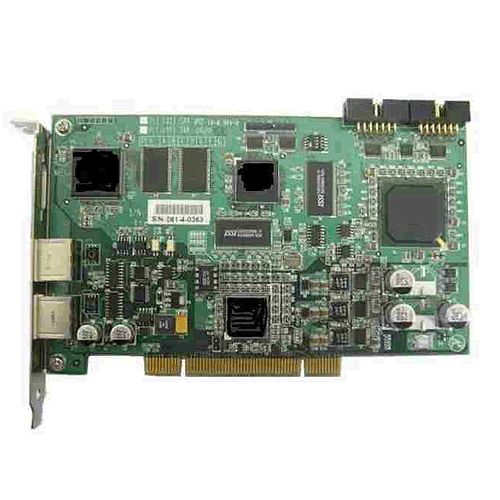

SX bus Vision Card Products SYN-TEK Technologies Inc.

•Max. 25MHz, SX Bus

•Linear, circular Helix and continuous interpolation

•Simultaneously start/stop on multiple axes

•Programmable acceleration and deceleration time

•1 Ring of SX Bus master

•Programmable cycle time(Max:1ms)

•20 pre. Buffers support continue move

• Velocity change on the fly

Motion Control

•Support Module:Fuji α type Driver

•Control mode:P mode , V mode , Torque mode

•Position range:32bits

•Home return mode: 4 types

•Velocity profiles: T-curve, S-curve

•Interpolation mode:linear, circular and continuous

•Machine interface:PEL, MEL, ORG, SLD EMGPEL, MEL, ORG, SLD EMGV

• Servo driver interface: ALM , RDY,SVON, INP,

DIO Control

•module function:digital I/O slave module

•support modules:NP1X1606-W (16 IN), NP1Y16T09P6 (16 OUT),

NP1X3206-W (16 IN / OUT) ,

NP1Y32T09P1-A ( Counter Output )

AIO Control

•module function:analog I/O slave module

•support modules:NP1AX04-MR,NP1AX08-MR,NP1AY02-MR,

NP1AYH4V-MR,NP1AYH8V-MR

General

•PCI Spec. 2.2;supports 32-bit, 3.3V/5V DC operation

•Power consumption: +5V DC at 0.5A typical

• Working temperature:0 to 60℃

SX bus
